Description:PTFE graphite packing is high- quality combination of PTFE with incorporated graphite and reinforced edges from aramide yarn.PTFE graphite packing aramide corners is used to prevent gap extrusions within the high pressure and temperature. PTFE graphite packing aramide corners is with perfect sliding velocity and thermal conductivity. This gland packing is recommended for piston pumps long service live. PTFE packing with kevlar fiber corner can be used to seal water.Sewage water,hot water.It can also be used to seal oils,greases,gases.,weak acids and alkaline solutions,abrasive media.
Main Specification:
|
Temperature |
-100℃~+260℃ |
|
Pressure) |
35MPa |
|
PH Range) |
2-13 |
|
Linear Speed) |
25M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|

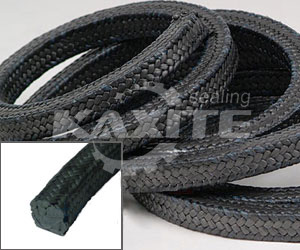

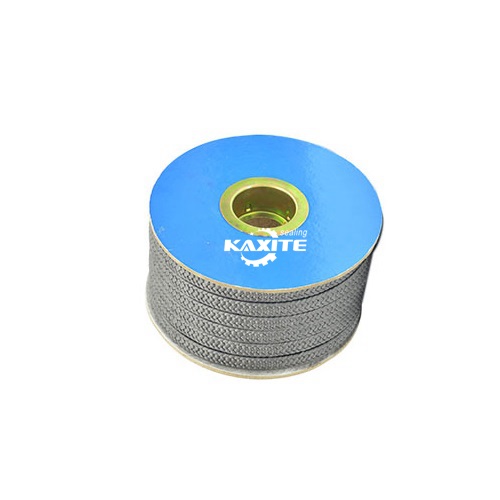

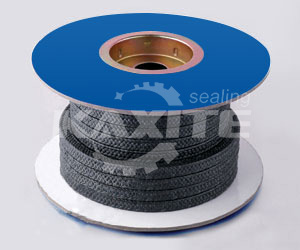

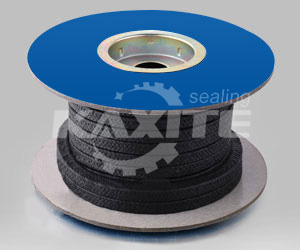

PTFE Graphite Fibre Packing（12% carbon） |
KXT-P1210 |
|
PTFE Graphite Fibre Packing（25% carbon） |
KXT-P1211 |
|
PTFE Graphite Fibre Packing With Oil |
KXT-P1214 |
| PTFE Graphite Filament Yarn Braided Packing | KXT-P1215 |
|

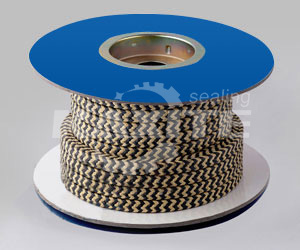

PTFE Packing With Kevlar Fibre Corner |
KXT-P1420 |
|

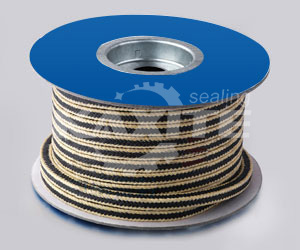

PTFE Graphite Packing Inter Aramide |
KXT-P1421 |
Parameter:
|
INCH ″ |
1/8 |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
11/16 |
3/4 |
7/8 |
1 |
|
MM |
3 |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
|
M / KG |
50 |
40 |
27 |
15 |
10 |
7.5 |
5.6 |
4.3 |
3.1 |
2.8 |
2.4 |
1.9 |
1.4 |
1.1 |
